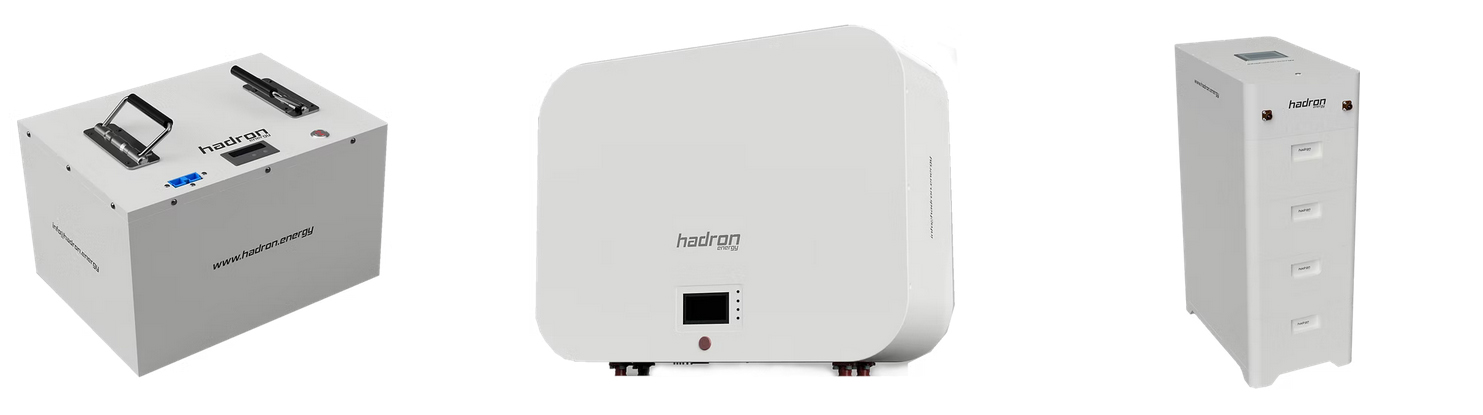

Hadron Energy - Wall mounted storage system.
Our wall mounted energy storage system has been designed from the ground up to be easily mounted with simple fixings.
The unit has a excellent energy density for its size and offers reliable safe energy storage for over 6000 cycles.
With a continuous discharge of 100A and 512Wh of potential the unit is suitable for many home applications.
100A DISCHARGE
6000 CYCLE LIFE OR 2 YEAR GUARANTEE
EASY TO MOUNT ON ANY CONVENIENT WALL.
QUICK TO SET UP AND INSTALL.
SIMPLE MENU SYSTEM FOR NAVIGATION.
EASY TO READ DISPLAY.
AVAILABLE IN VARIOUS POWER CONFIGURATIONS TO
SUIT ANY HOME.
AVILABLE FOR OEM PRODUCTION RUNS
Hadron Energy - Wall mounted
storage system - Specifications
Nominal capacity: 100Ah
Vitality: 5120 Wh
Internal resistance: less than ≤20mΩ
Cycle life: > 6000 cycles @1C 80% DOD
Self discharge(months) @ <3%
Charging efficiency: 100% @ 0.5°C
Discharge efficiency: 96-99% @ 1°C
Charging voltage: 58.4 ± 0.2V
Standard charging current: 50A
Maximum charging current: 100A
Charge cut-off voltage: 62.4 ± 0.2V
Continuous discharge current: 100A
Discharge cut off voltage: 43.2V
Storage temperature: 0-55°C @ 60 ±25%
relative humidity
IP rate: IP30
Full specification sheet
Wall Storage Unit
Hadron Energy -Stackable energy storage system.
Our stackable energy storage system is perfect for home and small office use applications, delivering clean reliable energy to our customers.
Full upgradable and offering up to 14.4kwh of energy it is suitable for many different applications. offered in two different configurations that you can customize to your needs.
Full specification sheet
Stackable Storage Unit
We provide our stackable energy storage system in two different versions offering up to 14.4kwh of system energy.
Each system is fully upgradable easy to install and offers excellent power output and storage capability.
EASY TO SET UP AND POSITION IN THE HOME
CONVENIENT STACKING SYSTEM.
EASY TO MONITOR
UP TO 120A DISCHARGE
INVERTER VERSION ALSO AVAILABLE. PLEASE CONTACT INFO@HADRON.ENERGY FOR MORE INFORMATION.

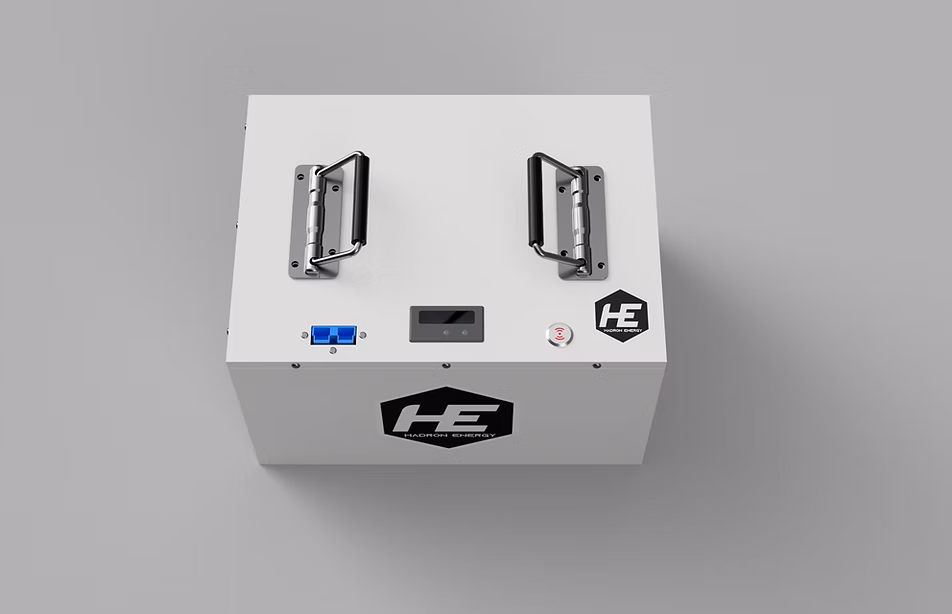

Hadron Energy - Back up energy
storage system 280Ah
Our back up energy storage solution is perfect for providing your energy needs on the go. From camping to sporting events, we have you covered in a compact, energy dense storage unit that will last you as long as you are out and on the go.
Hadron Energy - Back up pack
storage system specifications
Full specification sheet
12V Back Up Power
