EST 2014

SUR-RON & TALARIA

HIGH PERFORMANCE UPGRADE BATTERY AT A BUDGET PRICE

60-72V

NOMINAL VOLTAGE

42AH OR 56AH

TWO CAPACATIES AVAILABLE

300A

23KW CONTINUOUS

42AH VERSION PRICING

NOW READY

AVAILABLE TO ORDER NOW

ONE YEAR IN DEVELOPMENT, CUSTOM BMS, HIGH QUALITY CONSTRUCTION, NO FRILLS, NO GIMMICKS. JUST GREAT PERFORMANCE AT AN UNBEATABLE PRICE.
AVAILABLE SOON

FOR MORE INFORMATION PLEASE USE
THE EMAIL INFO@HADRON.ENERGY

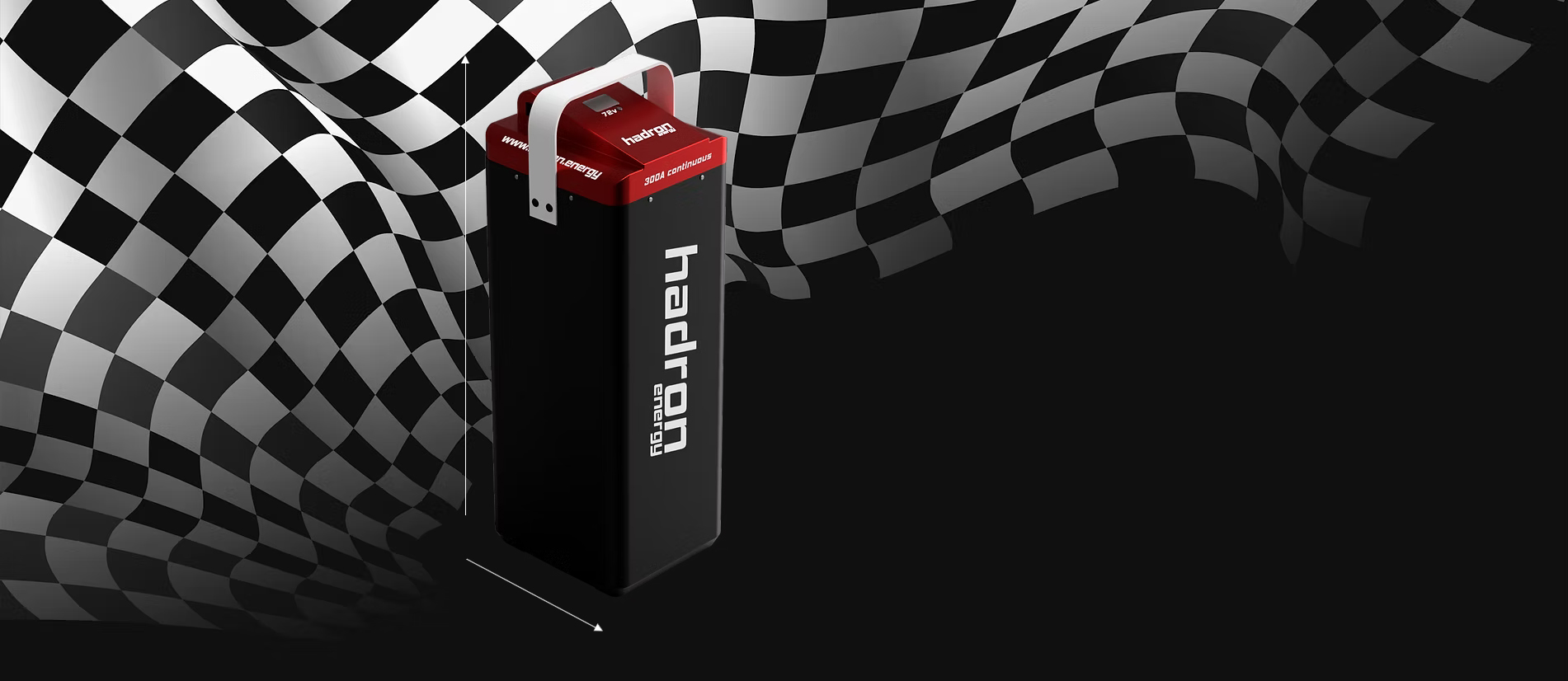

Hadron Energy high capacity performance battery represents the very best of what the industry has to offer at way less than the cost of its competitors. Ture performance, high quality materials and build quality make this battery a must have for Sur-Ron and Talaria upgrades.

CUSTOMISE YOUR COLOUR SCHEME

All Hadron Energy Sur-Ron and talaria batteries have fully customizable lid covers. coming in a range of options to suit any taste. These lids are made from CNC aluminium with a high quality anodized finished. The final touches are lasered decals and a high clarity lcd screen for battery information.

Hadron Energy - Sur- Ron & Talaria 23KW
(continuous) upgrade battery (72V version)

Designed to fit both Sur-Ron and Talaria Ebikes with a choice of connectors the Hadron upgrade battery is an excellent option for those wanting greater range and greater power.

With over 300A continuous rating our battery packs a serious punch providing enough power even for the most demanding of riders.

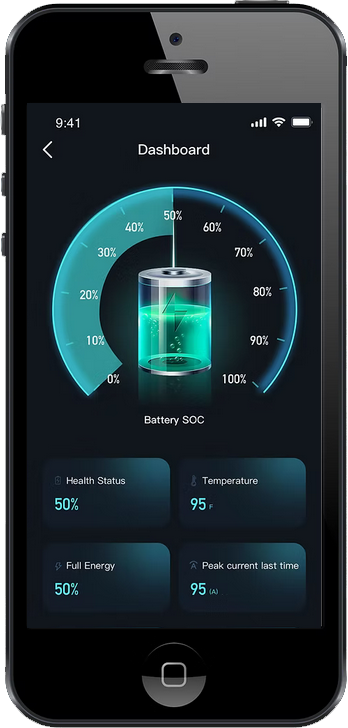

We have designed a custom BMS which also works with an Android and IOS app. In addition to supplying a range of connectors to suit many needs.

We design and manufacture all of our battery packs to the highest specification in our own facility. They also come with the correct certification and the full assurance of knowing that they are produced in a high end professional environment.

Weight
60c 56Ah - 14.5KG - 72v 45Ah 17.5KG - 72v
56AH 19.65KG

430mm (56Ah) 160mm (56Ah)
PERFORMANCE SPECIFICATIONS

Battery Top Line Specs + Full
Specification Sheet

Rated capacity: 56Ah
Nominal voltage: 72V
Voltage at end of discharge: 52V
Charging voltage: 84V
Maximum continuous charge: 30A
Maximum continuous discharge: up to 320A
(Suggested setting 300A)
Burst Discharge: up to 550A (depending on set up)
Burst Duration: 5s
Connector: Your choice
Wire thickness: 4AWG
Case material: Steel body with Aluminium
end caps. Hadron 72v Battery Full Specifications

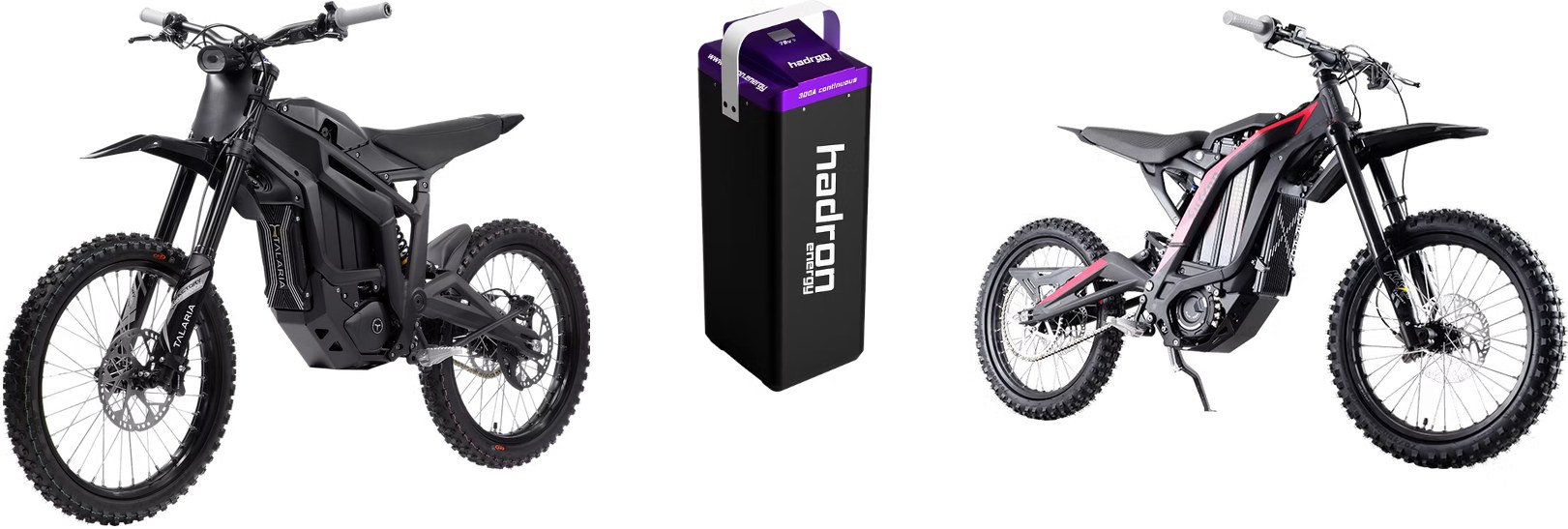

ONE BATTERY - BOTH BIKES

The Hadron battery fits both Sur-Ron and Talaria e-bikes in 45Ah and 56Ah varieties with a very quick and normal
modification process. We can also provide all fittings and parts to ensure that your battery fits securely in your
bike. Below is a fitting guide for each bike.

No seat riser required a modified lid is available for fitting to the standard Talaria without having the need to fit a seat riser kit.

Seat Riser kit required along with some slight modification to the battery tray. This is an easy process and takes very little time.

YOU CHOOSE THE CONNECTOR FOR YOUR PERFORMANCE REQUIREMENT
WHAT ABOUT THE TALARIA?

Talaria Battery Bike Lid

To ensure the best fit possible for the Talaria we have designed our own battery lid cover for the bike. As the Talaria is a larger bike many people do not feel the need to fit a seat riser to give a better height and seating position on the bike.

For this reason we have decided to make our own lid to ensure correct fitting of our battery without the need for a seat riser. This is available with our battery as an optional extra and will ship with the battery.

Custom BMS Solution

With up to 23KW continuous power rating our battery packs a serious punch providing enough power even for the most demanding of riders.

We have designed a custom BMS which also works with an Android and IOS app. In addition to supplying a range of connectors to suit many needs.

EMAIL INFO@HADRON.ENERGY FOR MORE INFORMATION AND ANY QUESTIONS

Hadron Energy - Manufacture

We design and build many types of battery packs for commercial applications. These range from domestic appliances such as cameras up to large electric vehicles in the domestic Chinese market.

All of our batteries are built using the highest level of production capability to a very high standard. We can produce and design batteries for any application.

We specialize in mobility projects and have been making batteries in the EV sector for over a decade.
